GOCD

Agenda

1. Part1 - Create your own pipeline muannually and automatically
2. Part2 - If zip file store on a seperately repository, such as Nexus, how to package and deploy?
3. Part3 - Show the deployed version on your application.

Part1

Agent

GoCD Agents are the workers in the GoCD ecosystem. All tasks configured in the system run on GoCD Agents. The GoCD Server polls for changes in material (this happens on the GoCD Server itself) and then, when a change is detected and a pipeline needs to be triggered, the corresponding jobs are assigned to the agents, for them to execute the tasks.

installation

1. download server and agent for mac, click show old releases button to choose version 19.3.0
2. unzip

3. Managing the GoCD server process

   Script	Description
   ./bin/go-server console	The GoCD server will be started in the foreground
   ./bin/go-server start	The GoCD server will be started as a daemon in the background
   ./bin/go-server stop	The GoCD server will be stopped
   ./bin/go-server restart	The GoCD server will be restarted

4. http://localhost:8153/go or https://localhost:8154/go

5. Location of GoCD server files

   Location	Description
   ${INSTALL_DIR}/db	the GoCD server database
   ${INSTALL_DIR}/artifacts	the GoCD server artifacts
   ${INSTALL_DIR}/plugins	the GoCD server plugins
   ${INSTALL_DIR}/config	the GoCD server configuration
   ${INSTALL_DIR}/logs	the GoCD server log files
   ${INSTALL_DIR}/{lib,wrapper}	the GoCD server binaries and startup scripts
   ${INSTALL_DIR}/wrapper-config/wrapper-properties.conf	the configuration file to alter GoCD server properties

6. Managing the GoCD agent process

   Script	Description
   ./bin/go-agent console	The GoCD agent will be started in the foreground
   ./bin/go-agent start	The GoCD agent will be started as a daemon in the background
   ./bin/go-agent stop	The GoCD agent will be stopped
   ./bin/go-agent restart	The GoCD agent will be restarted

7. ./bin/go-agent console -serverUrl https://localhost:8154/go
8. check the agent on the page

Create a pipeline

Concepts:

1. Stage

A stage is a collection of jobs, but the jobs are not sequential.

Assuming that you have enough agents started and not busy, then every job in a stage can run on a different agent at the same time, potentially speeding up your build by a lot.

2. Jobs

A job is a sequential collection of tasks. you can be guaranteed that all tasks in a job run on the same agent.

3. Tasks

A task is typically a command which is configured to run as a part of the job it is in.

example step1: manually create

1. Clicking on the Admin -> pipelines

    stage1: unit
        job1: run
            task1: ./gradlew clean test


    stage2: integration
        job1: run
            task1: ./gradlew integrationTest


    stage3: package
        job1: run
            task1: ./gradlew clean dist


4. Artifacts

An artifact in GoCD is a file or directory which is most often produced during the run of a pipeline.

Typically, artifacts are created during a job run, by one of the tasks. Some examples of artifacts are: Test reports, coverage reports, and anything else that needs to be stored after a pipeline has finished.

These artifacts are moved from the Agent where it is created, to the Server and stored there, so that it can be retrieved at any time.

These artifacts, published by a job, can be fetched and used by any downstream pipeline or any stage after the one that produced the artifact in the same pipeline, using a special task called a “Fetch Artifact” task. But, jobs are independent of each other. So, a job in the same stage as another job that produced an artifact cannot use that artifact. It needs to be used in a stage after that one.

“Test Artifact” means that GoCD will try and parse the file as a test report and if it can, it will use it in the test aggregation reporting it does.

“Build Artifact” for installers, binaries, documentation, etc.

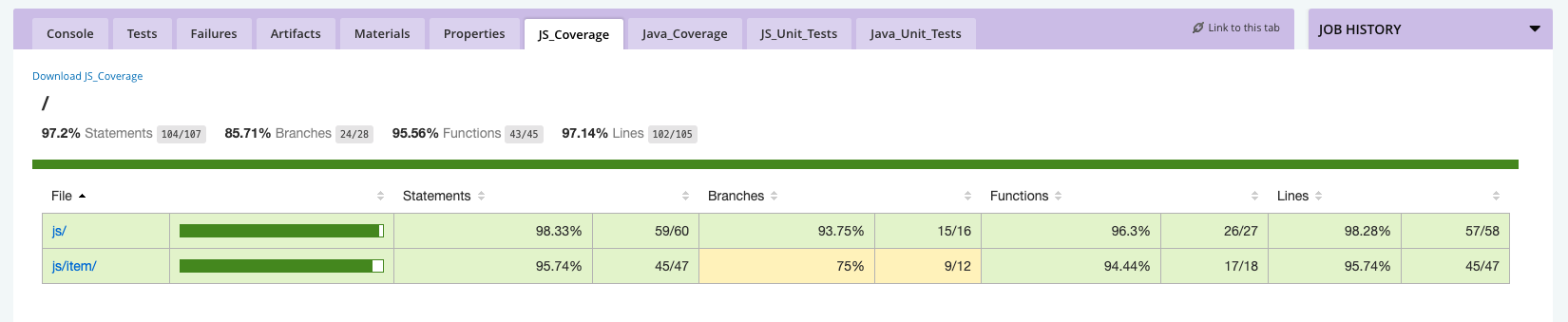

5. Custom Tabs

A custom tab in GoCD is a way of showing an artifact as a user-defined tab at the job level. Any file which is published as an artifact by a job can be shown. Usually, these are HTML files, with images. The GoCD Server will serve these files from its internal artifact repository.

example step2: manually create

1. edit the pipeline

    stage1: unit
        job1: run
            task1: ./gradlew clean test
            artifacts: type:build src:build/reports dest:/
            tabs: "JS_Coverage": "reports/coverage/js/index.html".
            		"Java_Coverage": "reports/coverage/unit/index.html"
               	"JS_Unit_Tests": "reports/tests/jsTest/index.html"
               	"Java_Unit_Tests": "reports/tests/test/index.html"


    stage2: integration
        job1: run
            task1: ./gradlew integrationTest
            artifacts: type:test src:build/reports/tests/integrationTest dest:reports/tests/
            tabs:  "test_report": "reports/tests/integrationTest/index.html"


    stage3: package
        job1: run
            task1: ./gradlew clean dist
            artifacts: type:build src:build/distributions/freewheelers.zip


    stage4: deploy-to-ci
        job1: deploy-to-ci
            task1: fetch
                    "is_source_a_file": true,
            task2: sh -c ./scripts/install.sh $REMOTE_DEPLOY_USER $CI_ENV_HOSTNAME $GO_ENVIRONMENT_NAME



2. Then add environment variables.

pipeline as code

1. clicking on the Admin -> Config Repositories
2. you will find the pipeline can not find agent. Because the pipeline need to run on a agent whose environments is freewheelers_env

Appendix

run it in docker

docker run -d -p8153:8153 -p8154:8154 -v /path/to/godata:/godata gocd/gocd-server:v19.3.0

Part2

How can you revert to previous version in product environment?

In our current pipeline, we can just click the redeploy button. Because we save our zip file in the artifact, the next stage can use fetch task to get from previous package stage. This will be saved on the server.

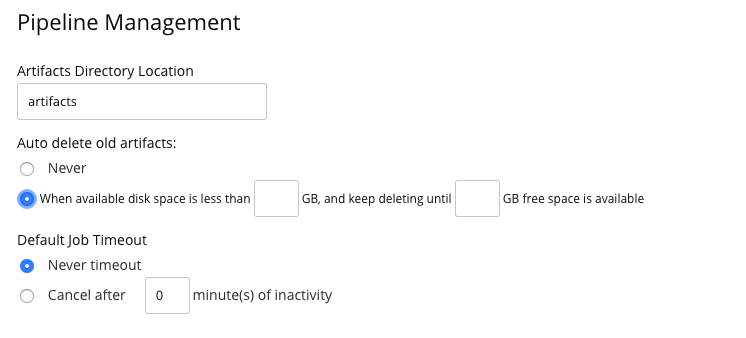

All the zip files are installed in {go-server}/artifact/

If we use a central reporsitory to store these file?

1. we can track the gocd deployed version number to our zip file.

   • gocd provides some standared environment variables.

     Environment Variable	Description	Example contents
     GO_PIPELINE_COUNTER	How many times the current pipeline has been run	2345
     GO_REVISION	The current source control revision being run (when using only one material)	123
     GO_SERVER_URL	Base URL for the GoCD server (including the context root)	https://127.0.0.1:8154/go

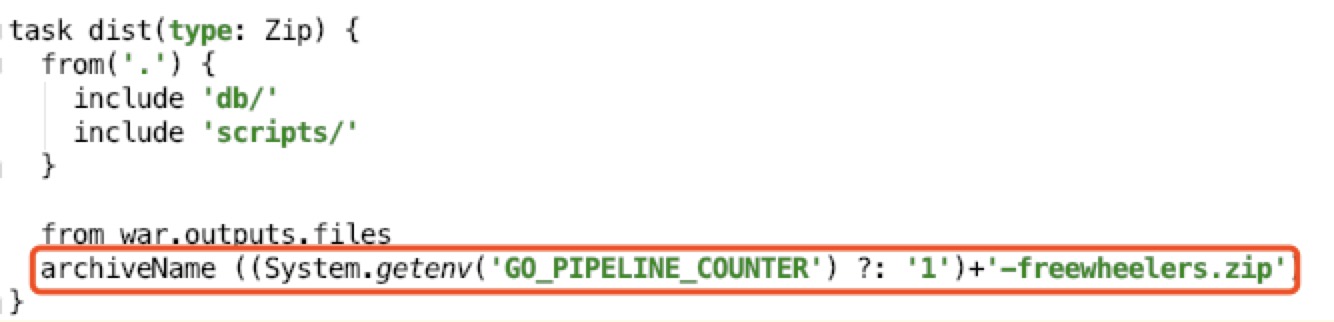

   • when you package the code to zip, name it with the variable

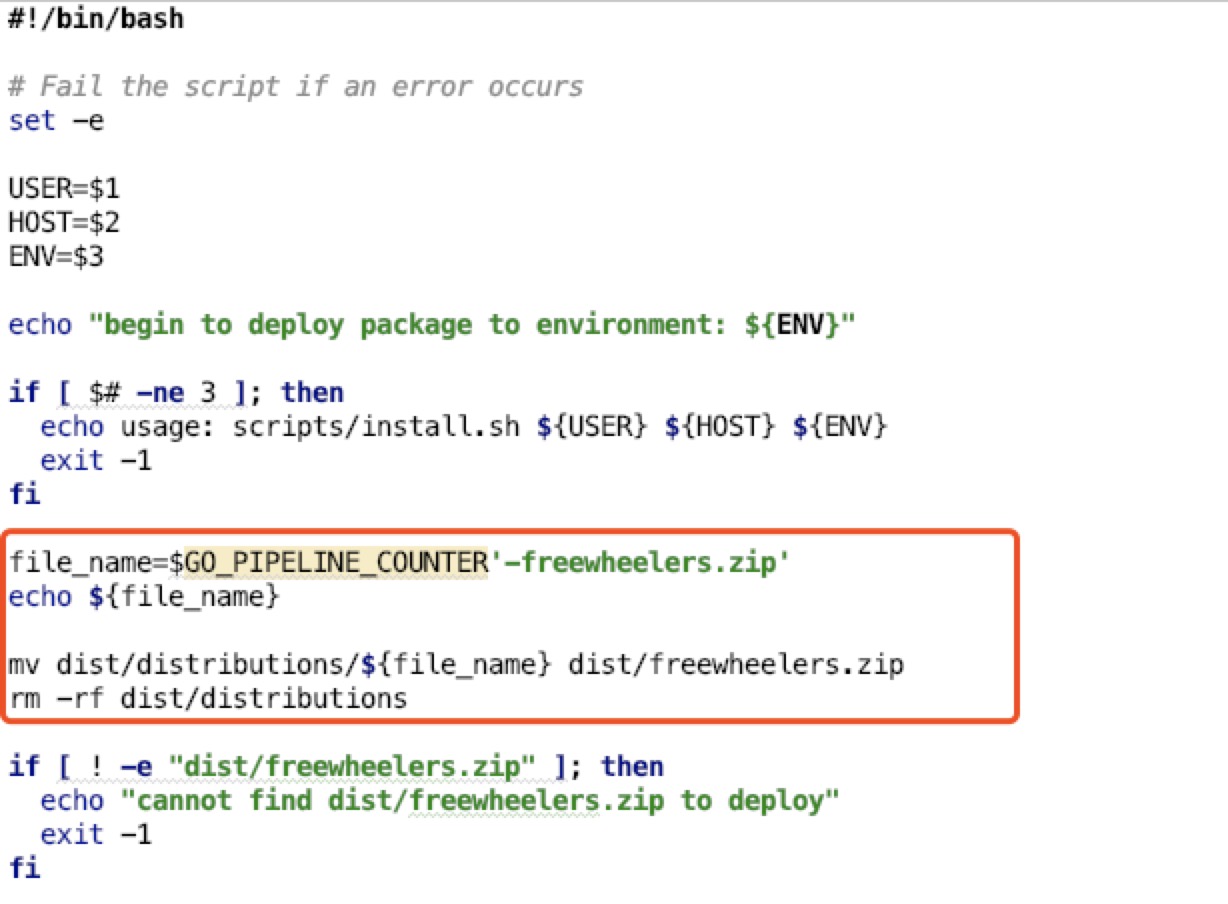

2. Then change your deploy script to fetch that zip file. eg: in the install.sh, we also need to rename the zip file.



Part3

show the deploy version in the application

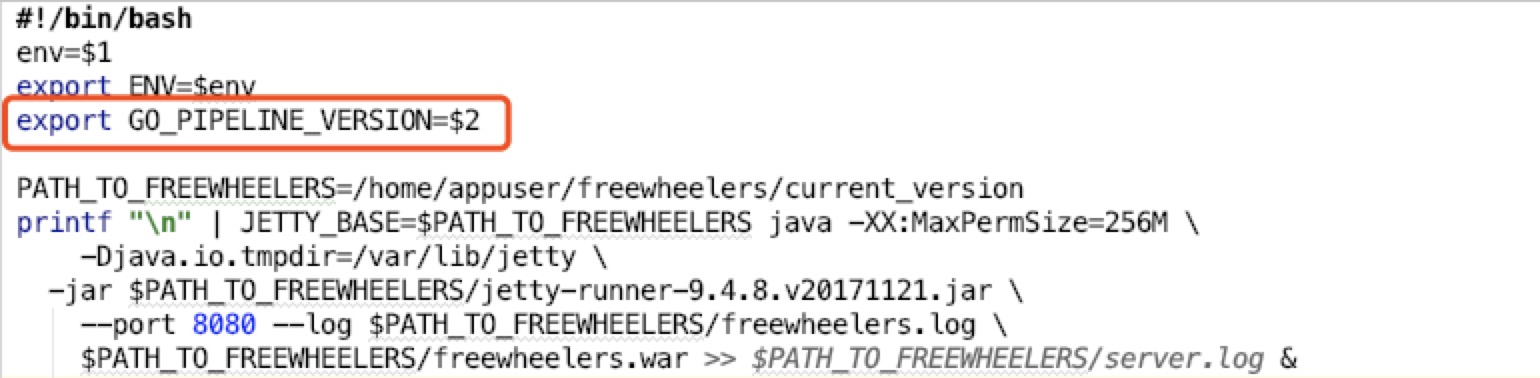

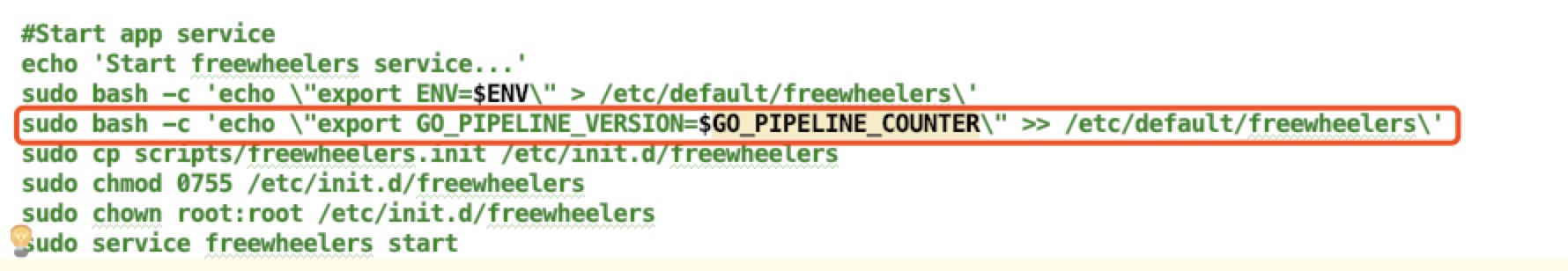

1. we get the $GO_PIPELINE_COUNTER in the install.sh, and export it to the server. Such as we already did in the install.sh about the env variable.





2. Add a /about controller to get the value from the environment then show this variable on the page – $GO_PIPELINE_COUNTER

    @RestController
    public class AboutController {

        private Environment environment;
        private ZonedDateTime deployTime = ZonedDateTime.now();

        public AboutController(Environment environment) {
            this.environment = environment;
        }

        @GetMapping(value = "/about")
        public String aboutInfo() {
            return environment.getProperty("GO_PIPELINE_VERSION")
                +  " at:   " + this.deployTime.toString()
                + " in: " + environment.getProperty("ENV");
        }
    }


Til next time,
